ISTA 1A Testing: Procedure, Requirements and Packaging Test Certificate
ISTA 1A testing is a non-simulation integrity test for individual packaged products weighing 150 lb (68 kg) or less. The procedure evaluates the ability of a product and its packaging to withstand defined vibration and shock tests under controlled laboratory conditions.

ISTA classifies Procedure 1A within its 1 Series Non-Simulation Integrity Performance Tests. These procedures are commonly used to challenge the strength and robustness of a packaged product during packaging development, comparison, and evaluation.
The product and packaging are tested as a complete system. This includes the product, outer carton, cushioning, inserts, closures, internal supports, and other components that contribute to packaging performance.
The core ISTA 1A procedure includes atmospheric preconditioning, fixed-displacement vibration, and shock testing. For free-fall shock testing, a rectangular packaged product is subjected to a 10-drop sequence using prescribed orientations, with the applicable drop height determined according to packaged-product weight.
What Is ISTA 1A Testing?
ISTA 1A is an integrity testing procedure for individual packaged products weighing 150 lb (68 kg) or less.
It can be used to evaluate a packaging configuration under consistent laboratory conditions or compare alternative packaging designs.
Typical applications include:
- Evaluating a new packaging design
- Comparing cartons or cushioning systems
- Identifying packaging weaknesses
- Investigating packaging performance problems
- Evaluating changes to a product or package
- Establishing a repeatable packaging performance benchmark
ISTA 1A evaluates the packaged product as a complete system.
A carton that remains intact does not automatically indicate satisfactory performance if the product inside has been damaged. Visible package deformation may also remain acceptable where it falls within the package degradation criteria established before testing.
Product damage tolerance and acceptable package degradation should therefore be defined before the test begins.
What Products Are Covered by ISTA 1A?
ISTA 1A applies to individual packaged products weighing 150 lb (68 kg) or less when prepared for shipment.
The weight refers to the complete packaged product, including the product and packaging.
Examples can include packaged:
- Consumer electronics
- Small appliances
- Toys
- Household products
- Kitchenware
- Hardware
- Automotive components
- Personal care products
- Retail goods
- Industrial components
Weight alone does not determine whether ISTA 1A is suitable.
The testing objective and distribution environment should also be considered. A packaged product moving through a parcel delivery system, for example, may require a general simulation procedure such as ISTA 3A when evaluation against parcel-distribution hazards is required.
ISTA 1A is designed as an integrity screening procedure and does not reproduce a specific transportation route or distribution system.
ISTA 1A Test Sequence
The core ISTA 1A procedure consists of three main elements:
- Atmospheric preconditioning
- Fixed-displacement vibration testing
- Shock testing
The packaged product is evaluated after the required test sequence against the product damage and package degradation criteria established before testing.
The exact test conditions should follow the current applicable version of the ISTA 1A procedure.
Atmospheric Preconditioning
Before mechanical testing begins, the packaged product undergoes required preconditioning at laboratory ambient temperature and humidity.
ISTA 1-Series procedures include a required 12-hour laboratory ambient preconditioning period.
This allows the packaged product to reach the laboratory environment before vibration and shock testing.
This preconditioning should be distinguished from more extensive controlled atmospheric conditioning used in other packaging test procedures.
The current ISTA equipment overview does not identify an environmental chamber as required equipment for Procedure 1A.

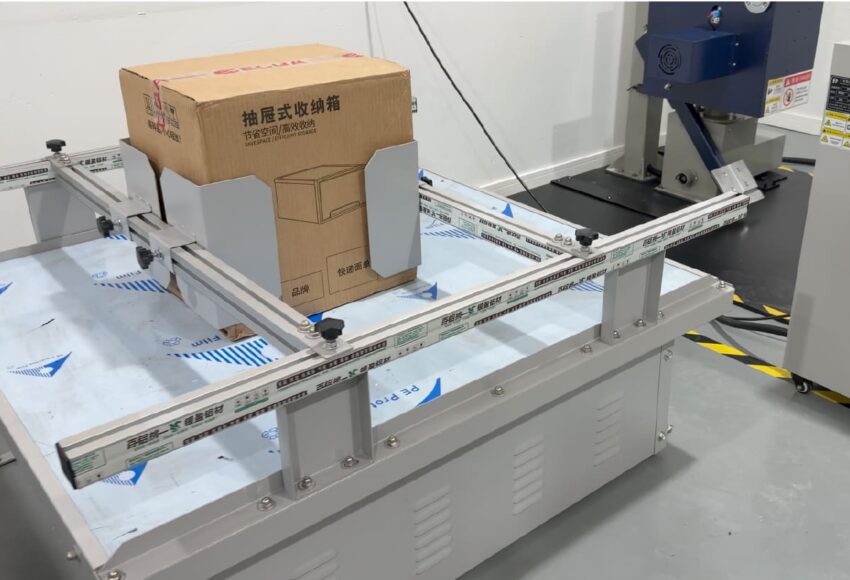

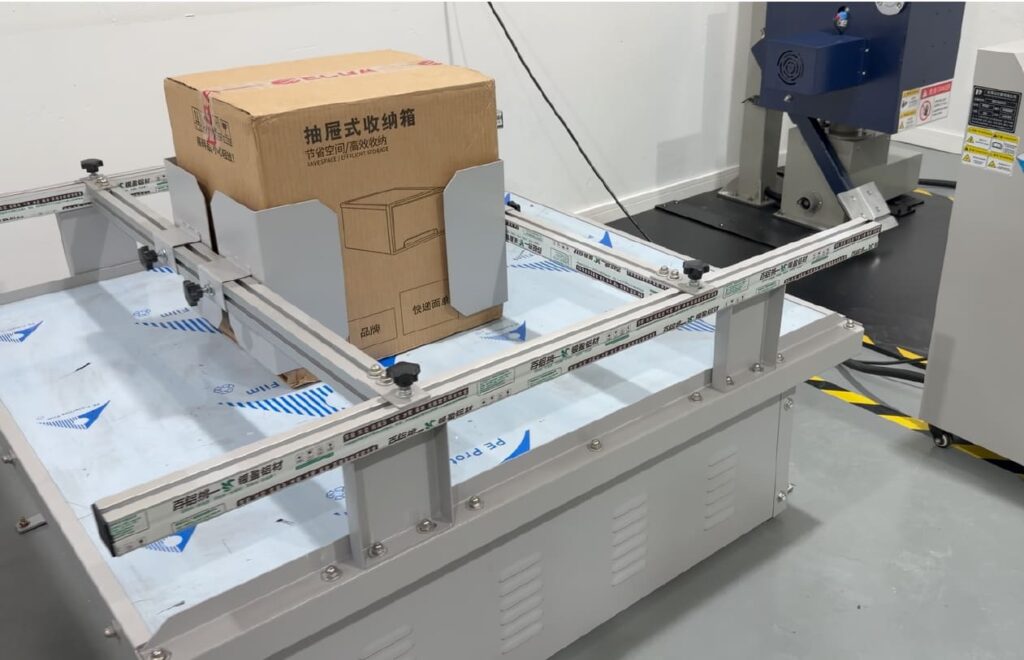

Fixed-Displacement Vibration Testing
Vibration testing evaluates how the packaged product responds to repeated mechanical movement.
ISTA 1A uses fixed-displacement vibration as its required vibration approach. The test challenges the integrity of the product and package combination under repeatable laboratory conditions.
Vibration may reveal problems such as:
- Product movement
- Cushioning displacement
- Abrasion
- Loosening of components
- Closure problems
- Carton fatigue
- Contact between the product and packaging
- Damage to internal supports
Internal movement is particularly important. The exterior carton can remain largely intact while the product, cushioning, accessories, or internal supports move sufficiently to cause damage.
ISTA identifies fixed-displacement vibration equipment as required for Procedure 1A. Random vibration equipment is identified as an alternative in the applicable equipment overview.
Where random vibration is specifically required as the basis of a 1-Series integrity procedure for packaged products weighing 150 lb (68 kg) or less, ISTA 1G should also be considered.
ISTA 1A Shock Testing
Shock testing evaluates how the packaged product responds to impacts associated with handling.
For ISTA 1A, free-fall drop testing is the required shock method. Incline impact, horizontal impact, or vertical shock may be used as alternative shock methods where applicable.
For free-fall testing, a rectangular packaged product is subjected to a 10-drop sequence using prescribed package orientations.
The required drop height depends on the total packaged-product weight.
ISTA 1A Drop Test Sequence
For a rectangular packaged product, the free-fall sequence consists of 10 drops covering a corner, edges, and faces:
- One drop on the most fragile corner
- One drop on the shortest edge radiating from that corner
- One drop on the next-longest edge radiating from that corner
- One drop on the longest edge radiating from that corner
- One drop flat on one of the smallest faces
- One drop flat on the opposite small face
- One drop flat on one of the medium faces
- One drop flat on the opposite medium face
- One drop flat on one of the largest faces
- One drop flat on the opposite large face
This sequence applies impacts to different structural areas of the package.
Corner and edge impacts can reveal weaknesses in cushioning, carton construction, closures, and internal supports. Face drops evaluate the response of the packaged product when the impact is distributed across a larger surface.
The exact package identification, orientation, and drop sequence should follow the current ISTA 1A procedure.
ISTA 1A Drop Height
ISTA 1A does not use the same drop height for every packaged product.
The required free-fall drop height is determined according to the total packaged-product weight.
The packaged-product weight includes the product and the complete packaging configuration used for testing, including:
- Outer packaging
- Cushioning
- Inserts
- Internal supports
- Protective materials
- Closures
- Other packaging components
The applicable drop height should be determined from the packaged-product weight classification specified in the current ISTA 1A procedure.
Correct weight classification is important because drop height directly affects the severity of the impact applied during testing.
The packaged-product weight and applicable drop height should therefore be confirmed before testing begins.
What Does the Drop Test Evaluate?
The drop sequence can reveal problems such as:
- Insufficient cushioning
- Corner or edge weakness
- Product movement inside the package
- Product breakage
- Closure failure
- Insert displacement
- Damage to internal supports
- Excessive clearance inside the package
- Loss of protection following repeated impacts
The product and packaging should be evaluated together after the required sequence.
An outer carton may remain relatively intact while the product, cushioning, inserts, or internal components have been damaged.
Alternative Shock Methods
ISTA 1A also identifies incline impact, horizontal impact, and vertical shock as alternative shock methods where applicable.
The selected method, test level, package orientation, and sequence should follow the current ISTA 1A procedure and the applicable laboratory test configuration.
Does ISTA 1A Include a Compression Test?
Compression testing is not part of the basic ISTA 1A test sequence.
This distinction is important because packaging performance testing is sometimes described generally as a combination of vibration, drop, and compression testing.
ISTA’s required-equipment information does not identify static or machine compression as a requirement for Procedure 1A.
Where minimum compression performance needs to be evaluated within the 1-Series framework, Procedure 1C can be considered for individual packaged products weighing 150 lb (68 kg) or less.
Separate carton or package compression testing may also be performed where required by a product specification, packaging requirement, customer requirement, or another applicable test method.
How Is an ISTA 1A Test Conducted?
ISTA 1A testing begins with defining the packaged-product configuration and acceptance criteria.
1. Identify the Packaged Product
The test sample should represent the packaged product intended for distribution.
Relevant information can include:
- Product description
- Product weight
- Total packaged-product weight
- Package dimensions
- Outer packaging
- Cushioning system
- Internal supports and inserts
- Closure method
- Packing configuration
Changes to any of these elements can affect test performance.
2. Establish Product Damage and Package Degradation Criteria
The shipper determines what constitutes product damage and what level of damage, if any, is acceptable.
The methodology used to evaluate product condition after testing and the acceptable condition of the package should also be established.
Acceptance criteria may address:
- Product functionality
- Cracking or breakage
- Cosmetic damage
- Permanent deformation
- Component displacement
- Carton damage
- Closure integrity
- Cushioning condition
For example, a small dent in a shipping carton may fall within the agreed degradation allowance for one packaged product while being unacceptable where the carton forms part of the retail presentation.
3. Prepare the Test Sample
The test should use the actual product and packaging configuration wherever possible.
The carton, cushioning, inserts, closures, protective materials, and packing arrangement should correspond with the configuration being evaluated.
Substituting different packaging materials can affect the relevance of the test result.
4. Perform Atmospheric Preconditioning
The packaged product undergoes the required laboratory ambient preconditioning before mechanical testing.
5. Conduct Vibration Testing
The packaged product is subjected to the applicable fixed-displacement vibration test.
Product movement, package deterioration, cushioning displacement, and other relevant observations can be documented during and after testing.
6. Conduct Shock Testing
The applicable shock test is performed according to the procedure.
For free-fall testing, this includes the required drop sequence and the drop height applicable to the packaged-product weight.
7. Examine the Product and Package
After the test sequence is complete, the product and packaging are examined against the acceptance criteria established before testing.
Both product condition and package condition should be documented.
How Many Samples Are Required for ISTA 1A?
ISTA 1A requires one sample to complete the procedure.
A single successful test should be interpreted within the scope of the tested sample.
Replicate testing with new samples can provide additional information when a more representative assessment of packaged-product performance is required. ISTA 1-Series guidance has historically recommended testing five or more samples where practical to improve confidence in representative performance.
Each replicate should use a new packaged-product sample because previous vibration or impact exposure can alter the condition of the packaging and product.
The number of samples used in a commercial testing program can therefore depend on the testing objective, customer requirements, sample availability, and required level of confidence.
ISTA 1A Test Equipment
The equipment required depends on the test element and shock method used.
Typical equipment includes:
- Fixed-displacement vibration equipment capable of performing the required vibration test
- Drop test equipment capable of producing controlled free-fall impacts
- Alternative shock equipment where an incline impact, horizontal impact, or vertical shock method is applicable
- Measurement equipment for packaged-product dimensions, weight, and other relevant test information
The equipment should be suitable for the package size, packaged-product weight, and applicable test conditions.
How Are ISTA 1A Test Results Evaluated?
ISTA 1A results are evaluated against the product damage tolerance and package degradation allowance established before testing.
The evaluation can consider whether:
- The required test sequence was completed
- The product remained functional where functionality is relevant
- Physical product damage remained within the defined tolerance
- Cosmetic condition met the established criteria
- Packaging degradation remained acceptable
- Closures remained effective
- Cushioning and internal supports continued to perform their intended functions
The result should consider the condition of the complete packaged product.
A package can appear relatively undamaged while the product has suffered internal or functional damage. Visible carton deformation can also occur without producing unacceptable product damage.
What Can Cause a Package to Fail ISTA 1A Testing?
Poor performance can originate from the product, packaging, or interaction between the two.
Insufficient Cushioning
Cushioning may be too thin, too rigid, too soft, incorrectly positioned, or unsuitable for the product’s weight and fragility.
This can allow excessive shock to reach the product during drop testing.
Excessive Movement Inside the Package
Unused internal space can allow the product to move during vibration and impact.
Movement can cause:
- Abrasion
- Component collisions
- Accessory damage
- Contact with the carton
- Displacement of internal packaging
Weak Carton Construction
Carton panels, corners, seams, or closures may deteriorate during vibration or impact.
The appropriate carton construction depends on the weight, dimensions, fragility, internal packaging, and overall packaging system.
Poor Internal Supports
Trays, dividers, foam inserts, molded pulp, and other internal components should retain the product throughout testing.
If these components shift, collapse, or fracture, the product can lose protection even when the outer carton remains closed.
Closure Failure
Tape, adhesive, staples, straps, and other closure systems may loosen or fail during testing.
Closure performance can be influenced by material selection, carton surface condition, application method, and packaging design.
Product Weakness
ISTA 1A evaluates the packaged product as a complete system, so a failed test does not automatically indicate that the outer carton is responsible.
Fragile components, loose assemblies, insufficient product restraint, or other product characteristics can contribute to damage during vibration or shock.
What Is an ISTA 1A Test Report or Certificate?
After testing, the laboratory can document the packaged product, test method, test conditions, observations, and results in an ISTA 1A test report.
Depending on the testing program, the documentation may include:
- Applicant or client information
- Product identification
- Sample description
- Package dimensions and weight
- Packaging configuration
- Test procedure
- Test equipment
- Test conditions
- Test sequence
- Product and package observations
- Photographs
- Acceptance criteria
- Test results
Where an ISTA 1A packaging test certificate is requested, the documentation should clearly identify the packaged product tested, applicable procedure, and reported result.
A laboratory-issued report or certificate should be interpreted according to the applicable testing and certification arrangement. Claims concerning ISTA certification, laboratory certification, or package certification should follow the relevant ISTA program and eligibility requirements.
ISTA 1A vs ISTA 1G
ISTA 1A and ISTA 1G both apply to individual packaged products weighing 150 lb (68 kg) or less, with an important difference in the vibration approach.
| Requirement | ISTA 1A | ISTA 1G |
| Test category | Non-simulation integrity | Non-simulation integrity |
| Packaged-product weight | ≤150 lb (68 kg) | ≤150 lb (68 kg) |
| Vibration approach | Fixed-displacement vibration | Random vibration |
| General purpose | Integrity screening | Integrity screening using random vibration |
ISTA 1G can be considered when random vibration is required within this type of 1-Series packaged-product integrity evaluation.
ISTA 1A vs ISTA 2A
ISTA 1A and ISTA 2A can both apply to individual packaged products weighing 150 lb (68 kg) or less, although they belong to different ISTA test series.
ISTA 1A is a Non-Simulation Integrity Performance Test used for basic packaged-product integrity screening.
ISTA 2A is a Partial Simulation Performance Test. The 2-Series combines elements of basic integrity testing with selected simulation elements.
The appropriate procedure should be selected according to the packaging evaluation objective and distribution requirements.
ISTA 1A vs ISTA 3A
ISTA 1A and ISTA 3A address different packaging evaluation objectives.
| Requirement | ISTA 1A | ISTA 3A |
| Category | Non-simulation integrity | General simulation |
| Weight classification | ≤150 lb (68 kg) | ≤150 lb (70 kg) |
| Application | General integrity screening | Parcel delivery system shipments |
| Distribution simulation | No | Parcel distribution environment |
| Vibration approach | Fixed-displacement | Random vibration |
The published metric values differ between the procedure descriptions. ISTA lists 1A as 150 lb (68 kg) or less and 3A as 150 lb (70 kg) or less.
ISTA 3A is designed for individual packaged products moving through parcel delivery systems and includes standard, small, flat, and elongated package types.
The selected procedure should correspond with the actual testing objective.
Is ISTA 1A a Transportation Simulation Test?
ISTA 1A is classified as a Non-Simulation Integrity Performance Test.
The procedure challenges the packaged product under defined laboratory conditions. It does not reproduce all hazards associated with a particular transportation route or distribution environment.
Passing ISTA 1A therefore demonstrates performance against the defined test conditions and established acceptance criteria for the tested packaged-product configuration.
Does Passing ISTA 1A Guarantee No Shipping Damage?
No.
Actual distribution can expose packages to different impact severities, vibration environments, stacking conditions, climatic conditions, handling practices, and transportation routes.
Some distribution hazards may fall outside the scope of Procedure 1A.
The test result should therefore be interpreted within the defined scope of the procedure and the packaged-product configuration evaluated.
When Should ISTA 1A Testing Be Repeated?
An ISTA 1A result applies to the packaged-product configuration that was tested.
Retesting should be considered when changes can affect packaging performance, including changes to:
- Product dimensions
- Product weight
- Product design
- Outer carton
- Corrugated board specification
- Cushioning material
- Cushioning thickness
- Internal inserts or supports
- Closure system
- Packing arrangement
- Quantity packed
- Manufacturing process
- Packaging process
Changes to these factors can alter how vibration and shock are transmitted through the packaged product.
The current version of the applicable ISTA procedure should also be confirmed when arranging new testing.
ISTA 1A Testing and Packaging Inspection
ISTA 1A testing evaluates the performance of the packaged product under a defined laboratory integrity test procedure.
Packaging inspection evaluates whether production packaging conforms to specified requirements such as:
- Carton dimensions
- Packaging materials
- Cushioning placement
- Packing configuration
- Labels
- Barcodes
- Shipping marks
- Closures
- Carton quantities
- Palletization where applicable
A packaged product can conform to its packaging specifications during inspection and still experience damage during vibration or shock testing.
For packaging programs requiring broader distribution evaluation, the appropriate ISTA procedure should be selected according to the packaged-product characteristics, distribution environment, and testing objective.
Frequently Asked Questions
How many drops are required for ISTA 1A?
For free-fall shock testing of a rectangular packaged product, ISTA 1A uses a 10-drop sequence covering a corner, three edges, and six faces. The exact orientation sequence should follow the current procedure.
What is the ISTA 1A drop height?
The required drop height depends on the total packaged-product weight. The applicable height should be selected from the weight classification specified in the current ISTA 1A procedure.
Does ISTA 1A include vibration testing?
Yes. Fixed-displacement vibration is part of the core ISTA 1A procedure. Random vibration can be relevant under the applicable alternative arrangement or another procedure such as ISTA 1G, depending on the testing objective.
Does ISTA 1A include compression testing?
Compression testing is not part of the basic ISTA 1A test sequence. Where minimum compression performance needs to be evaluated within the 1-Series framework, another applicable procedure such as ISTA 1C may need to be considered.
What is the maximum weight for ISTA 1A?
ISTA 1A applies to individual packaged products weighing 150 lb (68 kg) or less, including the product and its packaging.
Is ISTA 1A suitable for parcel delivery testing?
ISTA 1A provides non-simulation integrity screening. Where the objective is to evaluate a packaged product against hazards associated with parcel distribution, a general simulation procedure such as ISTA 3A may be more applicable.
Book ISTA 1A Testing in China
ECQA provides ISTA 1A testing in China for individual packaged products weighing 150 lb (68 kg) or less. Testing covers the applicable vibration and shock tests under the ISTA 1A procedure, with the results documented in a test report.
To arrange testing, provide the packaged-product description, dimensions, total packaged-product weight, packaging configuration, and testing requirements so that the applicable test scope can be confirmed before samples are submitted.
Request Free Sample Report
