Coating Thickness Requirements by Product Type and Industry
Coating thickness requirements vary depending on the product, coating type, service environment, industry standards, and customer specifications. A coating thickness that is acceptable for decorative indoor products may be insufficient for components exposed to marine environments, industrial chemicals, or outdoor weather conditions.
Because coating thickness directly affects corrosion protection, durability, appearance, and product lifespan, it is commonly specified in engineering drawings, purchase specifications, industry standards, and customer requirements.
For an overview of coating thickness measurement methods and standards, see our guide to Coating Thickness Testing Explained.
Why Coating Thickness Requirements Matter
Coating thickness is often used as an acceptance criterion during quality inspections.
If a coating is too thin, the product may experience:
- Reduced corrosion resistance
- Premature coating failure
- Shorter service life
- Increased maintenance requirements
If a coating is too thick, potential issues include:
- Cracking
- Peeling
- Poor adhesion
- Surface defects
- Dimensional interference
Maintaining the specified coating thickness range helps balance protection, performance, and cost.
What Determines Coating Thickness Requirements?
Several factors influence coating thickness specifications.
Service Environment
Products used in harsh environments typically require thicker coatings.
Examples include:
- Marine environments
- Coastal regions
- Industrial facilities
- Outdoor infrastructure
Coating Type
Different coating systems provide protection using different thickness ranges.
Examples include:
- Paint
- Powder coating
- Zinc plating
- Nickel plating
- Chrome plating
- Galvanizing
- Anodizing
Product Function
Functional coatings often have different requirements than decorative coatings.
Industry Standards
Many industries define minimum coating thickness requirements through international or customer-specific standards.
Customer Specifications
Engineering drawings and procurement documents often specify minimum or target coating thickness values.
Powder Coating Thickness Requirements
Powder coating is commonly used on metal products for corrosion protection and appearance.
Common Applications
- Metal furniture
- Appliances
- Industrial equipment
- Architectural products
Typical Thickness Range
| Coating Type | Typical Thickness |
| Standard Powder Coating | 60–120 μm |
| Heavy-Duty Powder Coating | 120–200 μm |
Why Thickness Matters
Insufficient thickness may reduce durability, while excessive thickness can cause orange peel effects, cracking, or poor curing.
Paint Coating Thickness Requirements
Paint systems often consist of multiple layers, including primers, intermediate coats, and topcoats.
Common Applications
- Industrial equipment
- Automotive components
- Steel structures
- Consumer products
Typical Dry Film Thickness (DFT)
| Paint System | Typical DFT |
| Single-Coat Paint | 25–80 μm |
| Industrial Paint System | 80–250 μm |
| Heavy-Duty Protective Coating | 250–500 μm |
Actual requirements depend on the coating system and service environment.
Galvanizing Thickness Requirements
Galvanized coatings protect steel products from corrosion through a zinc layer.
Common Applications
- Structural steel
- Fencing
- Utility poles
- Outdoor equipment
Typical Thickness Range
| Galvanizing Type | Typical Thickness |
| Hot Dip Galvanizing | 45–120 μm |
| Heavy Structural Galvanizing | 85–150 μm |
Common Standards
- ISO 1461
- ASTM A123
- ASTM A153
Coating thickness requirements often depend on steel thickness and product category.
Zinc Plating Thickness Requirements
Electroplated zinc coatings provide corrosion protection for smaller metal components.
Common Applications
- Fasteners
- Hardware
- Automotive parts
Typical Thickness Range
| Zinc Plating Type | Typical Thickness |
| Decorative Zinc Plating | 5–8 μm |
| Standard Zinc Plating | 8–12 μm |
| Enhanced Corrosion Protection | 12–25 μm |
The required thickness often depends on corrosion resistance expectations and salt spray requirements.
Nickel and Chrome Plating Requirements
Nickel and chrome coatings are widely used for decorative and functional applications.
Common Applications
- Plumbing fittings
- Automotive trim
- Hardware products
Typical Thickness Range
| Coating Type | Typical Thickness |
| Nickel Plating | 5–50 μm |
| Decorative Chrome | 0.5–2 μm |
| Hard Chrome | 10–500 μm |
Functional chrome coatings generally require significantly greater thickness than decorative coatings.
Anodizing Thickness Requirements
Anodizing creates a protective oxide layer on aluminum surfaces.
Common Applications
- Aluminum profiles
- Consumer electronics
- Architectural components
Typical Thickness Range
| Anodizing Type | Typical Thickness |
| Decorative Anodizing | 5–15 μm |
| Standard Industrial Anodizing | 15–25 μm |
| Hard Anodizing | 25–100 μm |
Thickness requirements vary according to wear resistance and environmental exposure requirements.
Coating Thickness Requirements for Automotive Components
Automotive components frequently require coating thickness specifications to ensure long-term durability.
Common Components
- Fasteners
- Chassis parts
- Suspension components
- Exterior metal parts
Common Requirements
Requirements often consider:
- Corrosion resistance targets
- Salt spray performance
- Vehicle lifespan expectations
- OEM specifications
Automotive buyers commonly specify both coating thickness and corrosion testing requirements.
Coating Thickness Requirements for Structural Steel
Structural steel often requires protective coating systems for outdoor use.
Common Applications
- Bridges
- Industrial plants
- Transmission towers
- Commercial buildings
Typical Requirements
Industrial protective coating systems often require:
150–500 μm total dry film thickness
depending on environmental exposure and service life expectations.

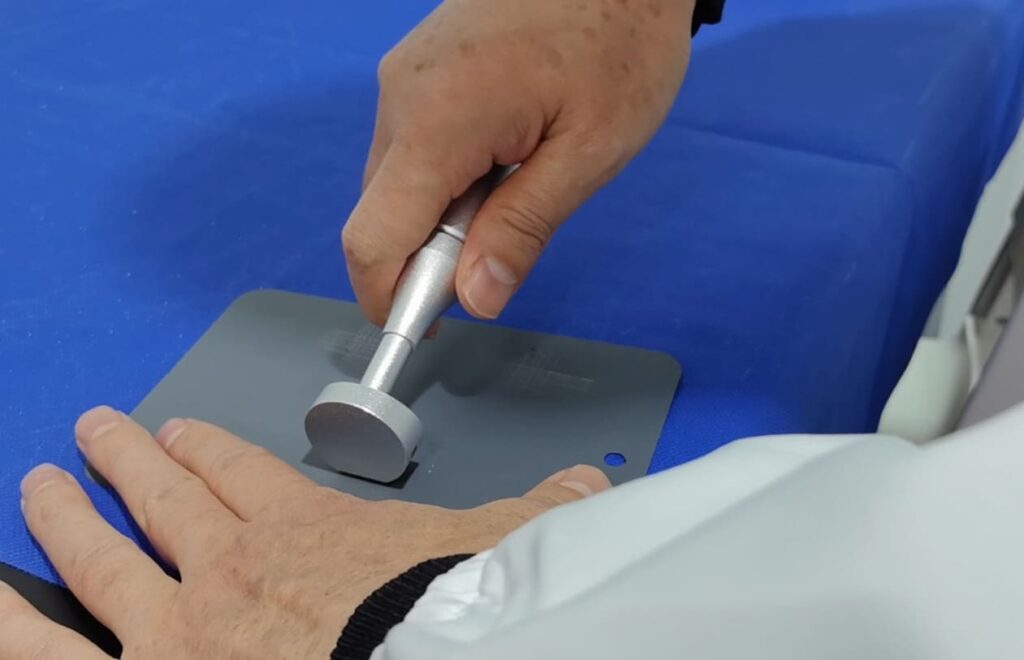

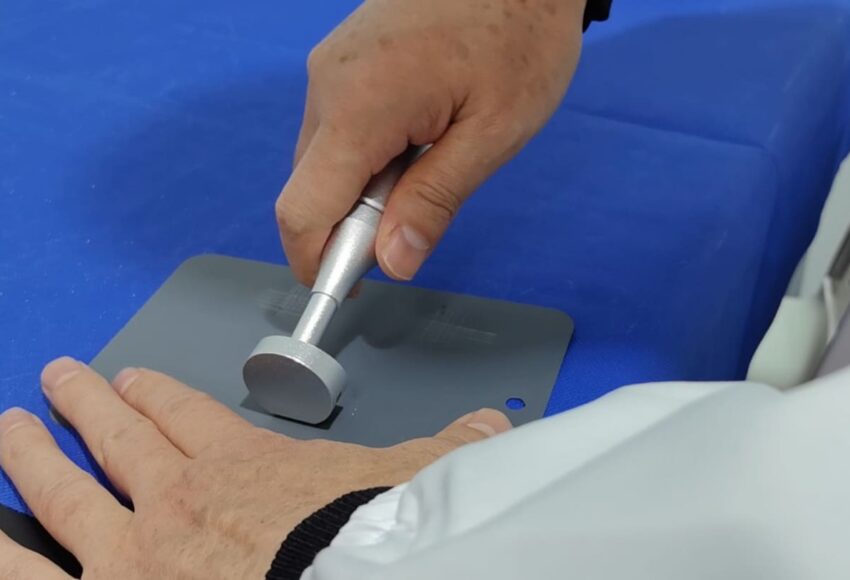

How Coating Thickness Requirements Are Verified
Coating thickness requirements are typically verified through laboratory testing and quality inspections.
Common measurement methods include:
- Magnetic induction measurement
- Eddy current measurement
- Microscopic cross-section analysis
- Ultrasonic thickness measurement
ECQA provides coating thickness testing services according to internationally recognized and national standards, including:
International Standards
- ISO 2808:2019
China Standards
- GB/T 4956-2003
- GB/T 4957-2003
- GB/T 5237.2-2017
- GB/T 5237.3-2017
- GB/T 13452.2-2008
For coating adhesion evaluation, ECQA also performs testing according to:
GB/T 9286-2021
Common Causes of Coating Thickness Non-Conformance
Products may fail coating thickness requirements due to:
- Improper application settings
- Poor surface preparation
- Inadequate process control
- Incorrect coating equipment calibration
- Excessive coating buildup
- Uneven coating distribution
Coating thickness requirements vary significantly across industries, coating systems, and product applications. Powder coating, galvanizing, electroplating, anodizing, and paint systems all require different thickness ranges based on performance expectations and environmental conditions.
Understanding these requirements helps manufacturers improve process control, verify compliance, and ensure products achieve the intended level of protection and durability throughout their service life.
Frequently Asked Questions
1. What is the ideal coating thickness?
There is no universal ideal thickness. Requirements depend on the coating type, product application, and service environment.
2. Does thicker coating provide better protection?
Not always. Excessive coating thickness can create adhesion and durability problems.
3. Are coating thickness requirements defined by standards?
Some standards define minimum requirements, while others provide measurement procedures. Customer specifications often determine final acceptance criteria.
4. How is coating thickness measured?
Common methods include magnetic gauges, eddy current gauges, ultrasonic testing, and microscopic analysis.
5. Why do buyers specify coating thickness?
Coating thickness directly affects corrosion resistance, durability, appearance, and product lifespan.
